TELOSB/TMote Sky
From Capsil Wiki
Developed by the University of California, Berekely. It was a new mote design based on experiences with previous mote generations. Berekely designed theTelos with three major goals in mind to enable experimentation: minimal power consumption, easy to use, and increased software and hardware robustness. The use of the MSP430 in Telos gave it apower profile almost one-tenth the consumption of their previous mote platforms
http://www.hurray.isep.ipp.pt/activities/WSN/GetFile.aspx?File=crossbow.jpg

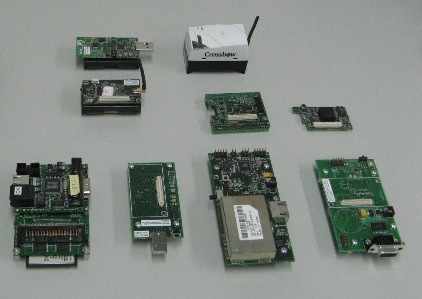

Selection of TelosB sensors [1]
Contents |
Hardware Specifications
| Sensing: | Integrated Humidity, Temperature, and Light sensors |
|---|---|
| I/O: |
16-pin expansion support and optional SMA antenna connector |
| Radios: |
802.15.4 Radio
|
| CPU: |
|
| Storage: | Uses the ST M25P80 40MHz serial code flash for external data and code
storage.
|
Application
Environmental Sensors
Power
Thesed motes may be powered by two AA batteries and were designed to fit the two AA battery form factor. AA batteries from 2.1 to 3.6V DC may be used but for programming, the minimum power that must be supplied is 2.7V DC. Power will be drawn from the USB port (3V DC) whilst the device is connected directly to a host computer which negates the need for batteries if this is the common use factor of the device. The 16-pin expansion connector can also be used to provide power provided that power does not exceed the maximum value of 3.6V DC.
Software
Additional Information
- TelosB Datasheet
- TMote Sky Datasheet
- TelosB by Crossbow
- Differences between TMote Sky and TelosB
- Moteiv Hardware Product Transition Notice
- TMote Support
Papers
- H. Wang and B. Sheng and Q. Li. "TelosB implementation of elliptic curve cryptography over primary field." Technical Report WM-CS-2005-12, Dept. of Computer Science, College of William and Mary, Oct. 2005.
- G. Werner-Allen, K. Lorincz, M. Welsh, O. Marcillo, J. Johnson, M. Ruiz, J. Lees, "Deploying a Wireless Sensor Network on an Active Volcano," IEEE Internet Computing, vol. 10, no. 2, pp. 18-25, March/April, 2006.
- Otto, C. and Milenkovic, A. and Sanders, C. and Jovanov, E., "System architecture of a wireless body area sensor network for ubiquitous health monitoring", Journal of Mobile Multimedia, Vol. 1, No. 4, pp307-326, 2006
- Farshchi, S. and Pesterev, A. and Ho, W.L. and Judy, J.W., "Acquiring High-Rate Neural Spike Data with Hardware-Constrained Embedded Sensors", Engineering in Medicine and Biology Society, 2006. EMBS'06. 28th Annual International Conference of the IEEE, 2006
